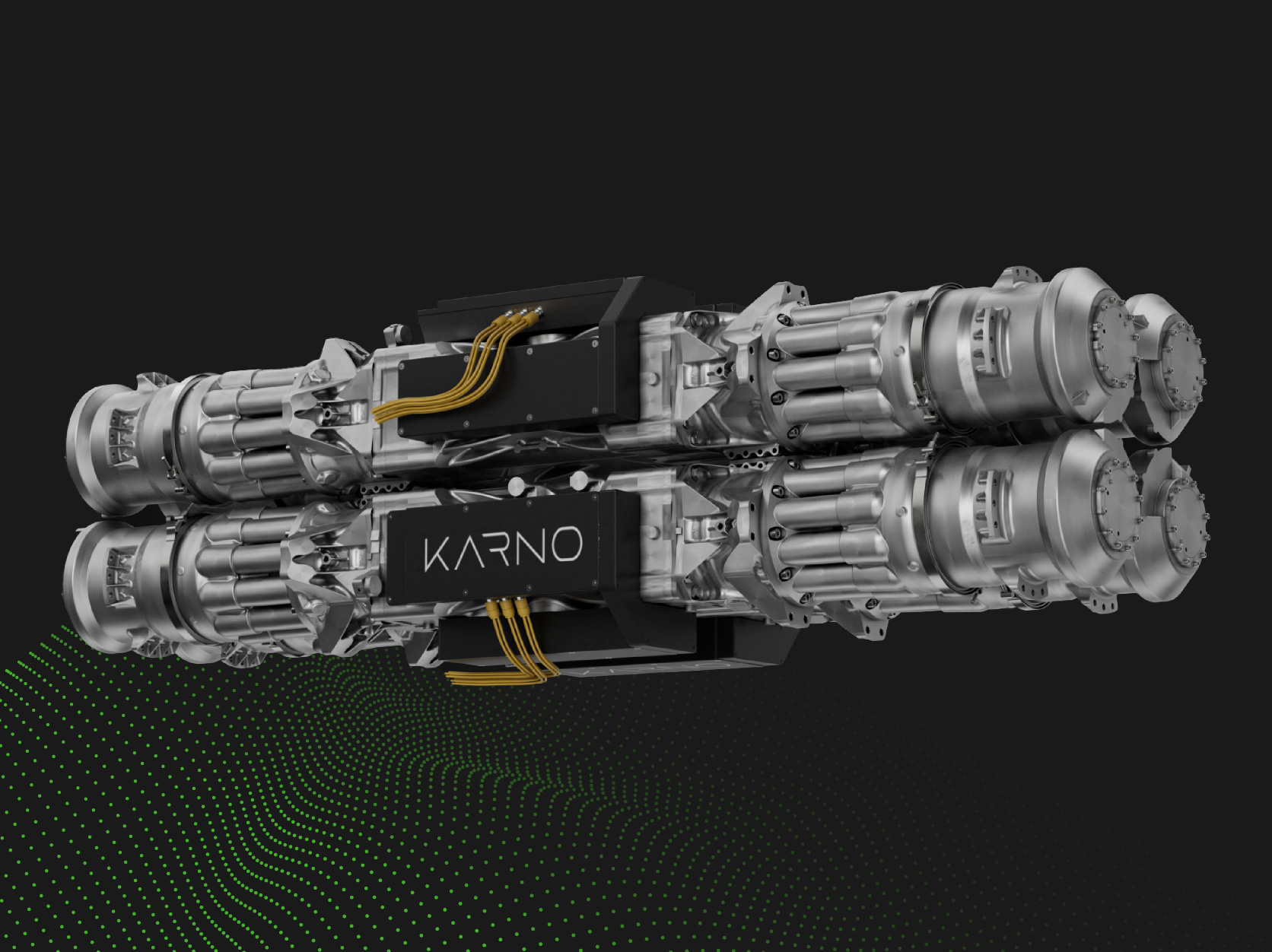

The Hyliion KARNO Core is a game-changing linear generator that turns heat into electricity using a flameless, low-temperature oxidation process. The system is designed to deliver ultra-low to zero emissions without the need for additional emission treatments. Each 200 kW linear generator features four synchronized shafts working together to drive a thermodynamic cycle that uses heat to power linear piston movements. These movements generate electricity as the shaft, featuring a magnet array, moves through static copper coils at a high frequency.
To see the KARNO Core’s innovative technology in action and learn more about how it works, check out the full video.
The Future of Power Generation

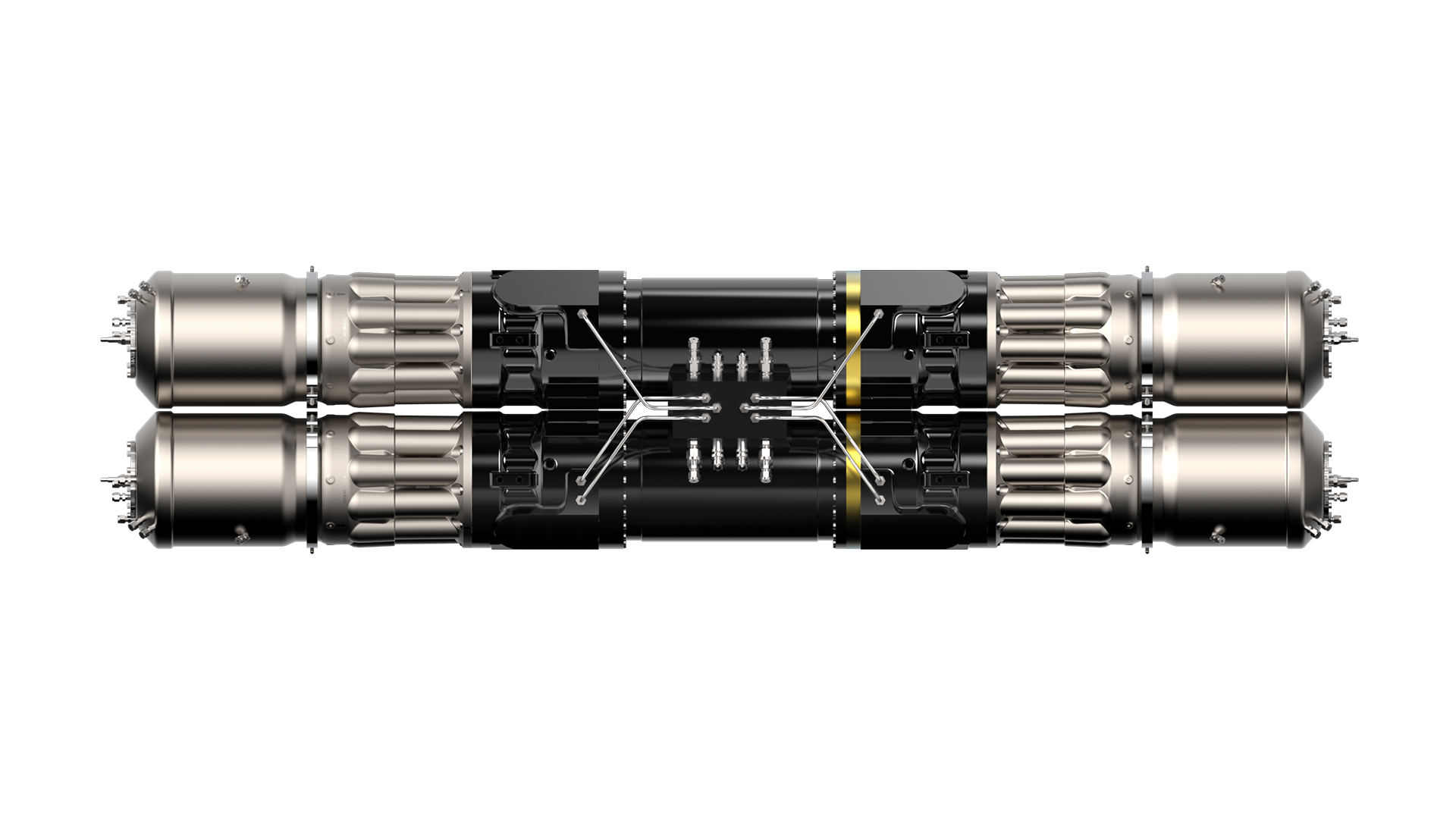

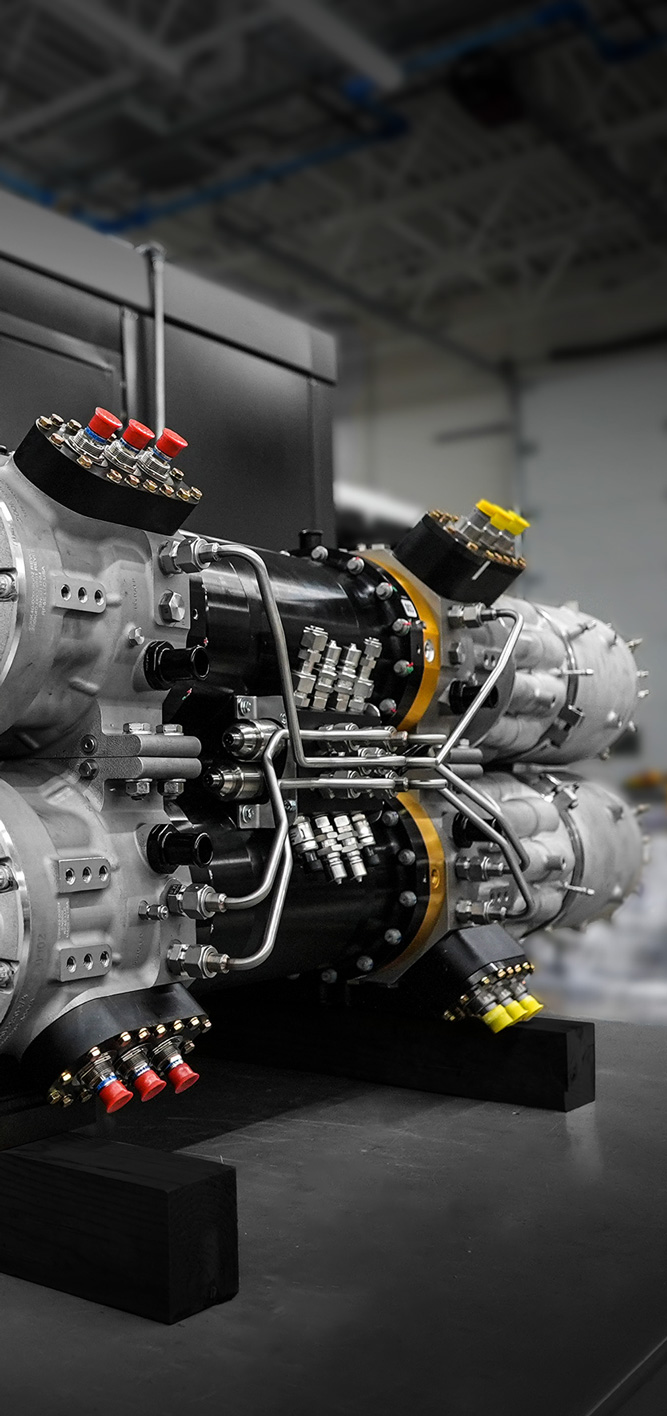

At the heart of Hyliion’s KARNO Power Module is the truly innovative KARNO Core, which uses linear electric motors in a four-shaft system to generate electricity. Building on the principles of the 200-year-old Stirling thermodynamic cycle, the KARNO Core is the result of years of extensive research and development work in aerospace engines, metal additive manufacturing, and generator thermal and performance design.
Providing clean electricity on command, with exceptional load-following capability, the KARNO Power Module is designed to deliver dispatchable power on demand.
How the KARNO Core Works

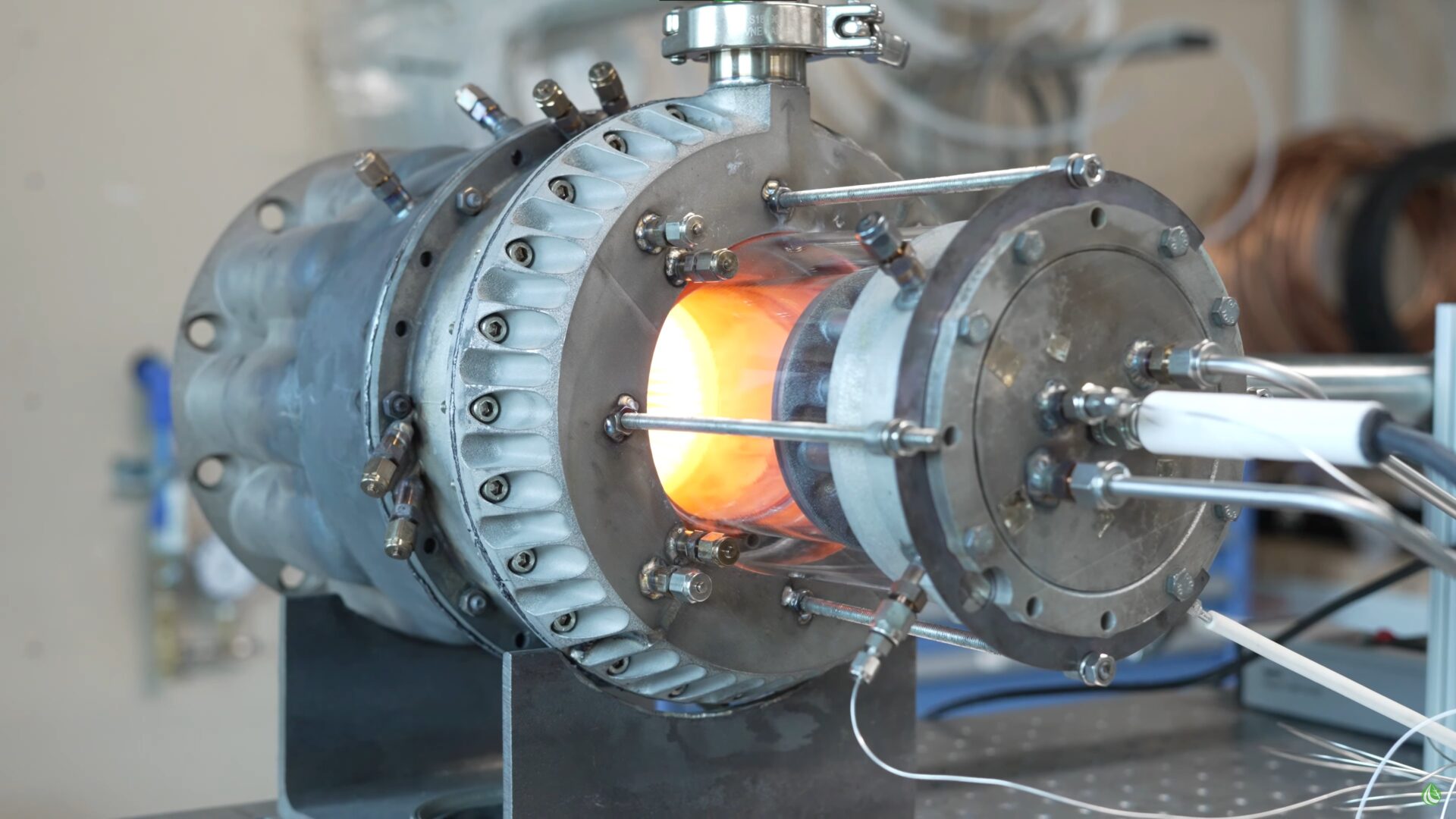

Flameless Oxidation*
The KARNO proprietary flameless oxidation system, coupled with the unique KARNO architecture, requires only heat to be supplied to the core power system, resulting in a truly fuel-agnostic design. The KARNO system is compatible with fuels that have flame characteristics as slow as ammonia and as fast as hydrogen – without any hardware modifications.
*Certification timeline and availability of specific fuels may vary.

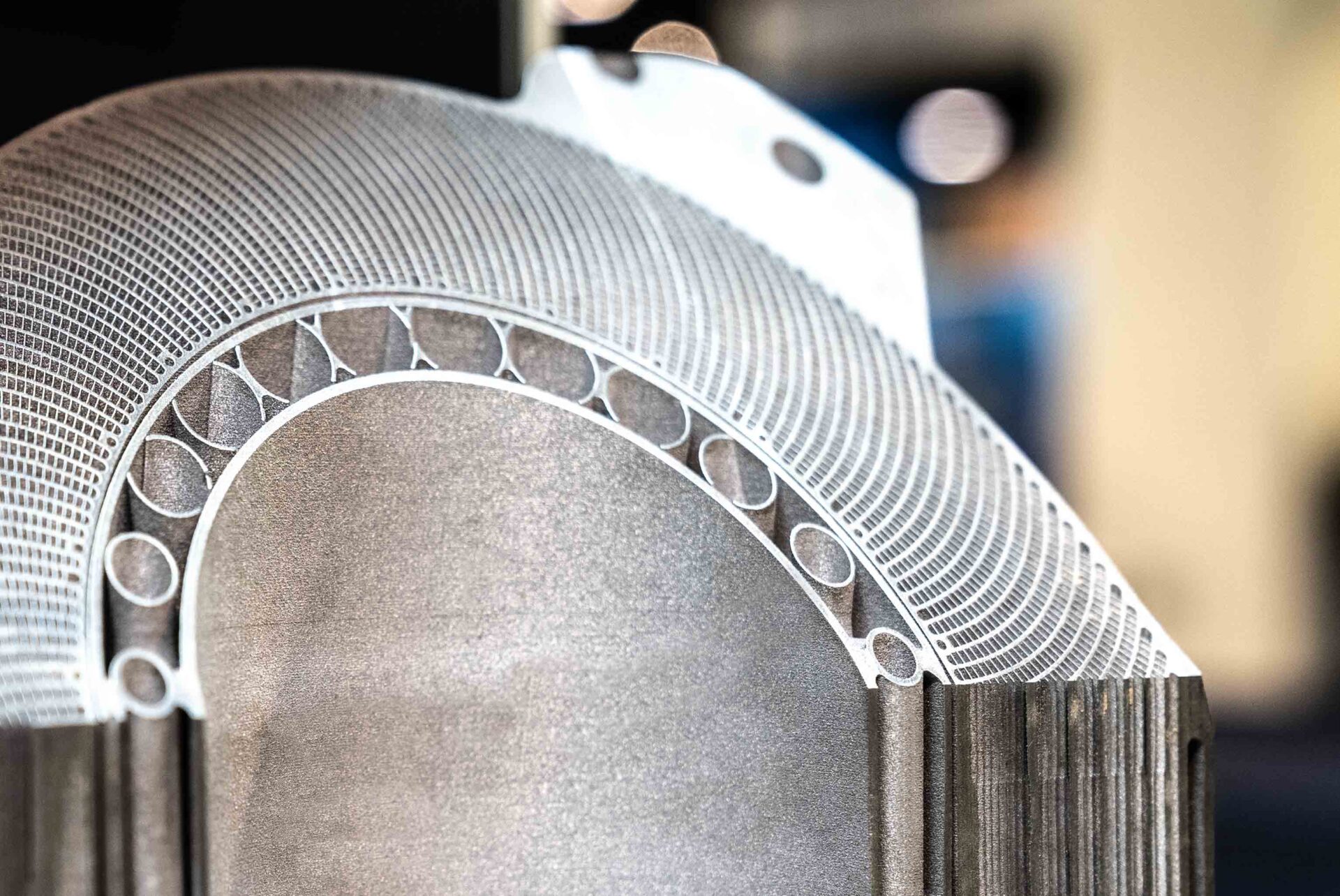

Complex Geometries
Breakthroughs in Additive Manufacturing (3-D Metal Printing) and Hyliion’s ability to leverage the technology to unlock design opportunities are the key drivers behind the KARNO Core’s high efficiency, truly unlocking endless possibilities with complex geometries.
Smart Control
-

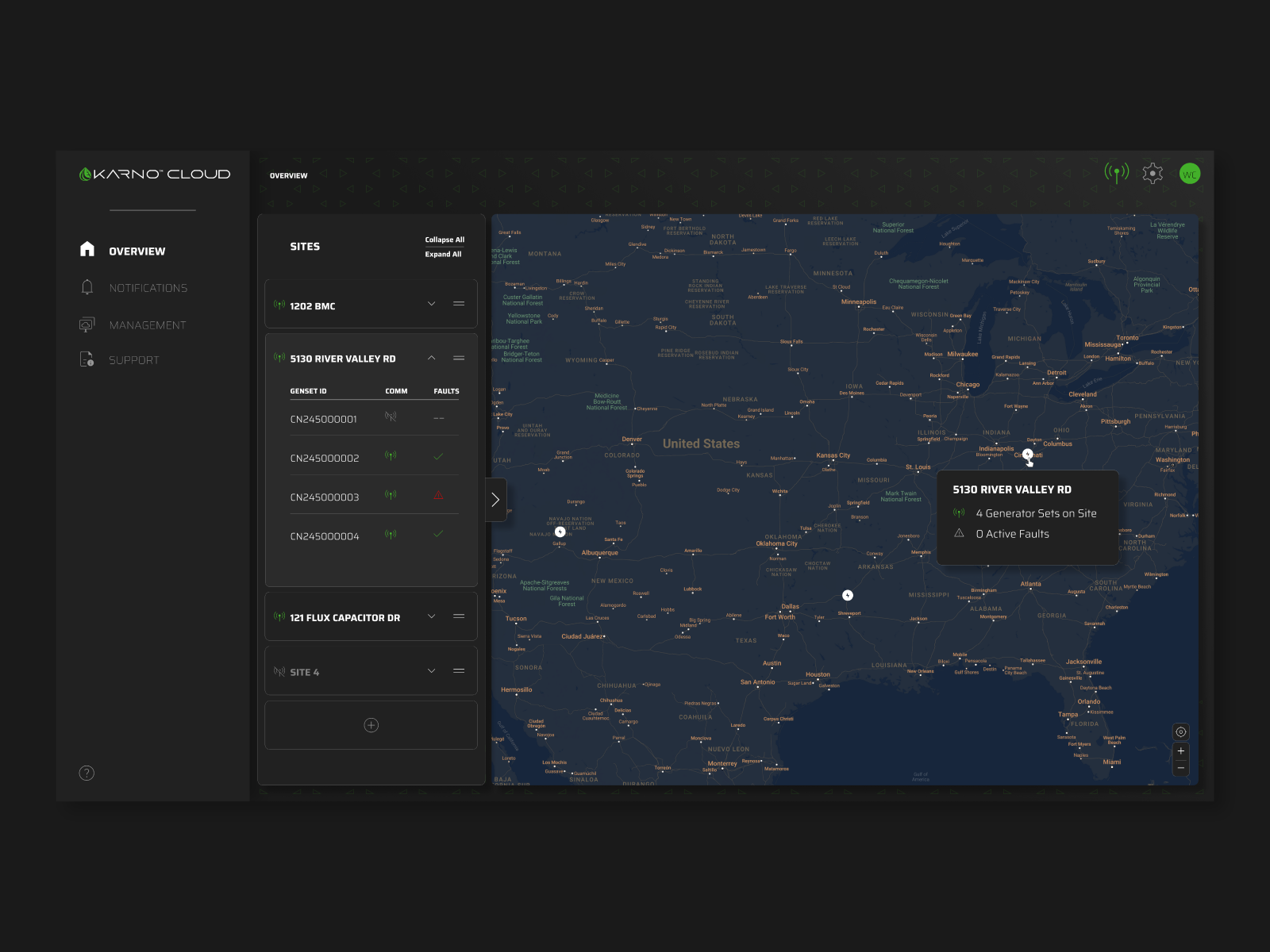

24/7 Cloud Connectivity
Access 24/7 real-time remote monitoring of the KARNO system from anywhere in the world.*
*Some features/performance metrics may not be available at launch.
-
Integrated Controls
The KARNO Management System (KMS) offers enhanced controls functionality and system redundancy through effective use of distributed logic architecture. A user-friendly experience delivered through a large touchscreen interface enhances user interactions.*
*Interface visuals are for illustrative purposes, final product design is subject to change. All content, including but not limited to text, graphics, logos, images, and software are the property of Hyliion Inc.
Scalability

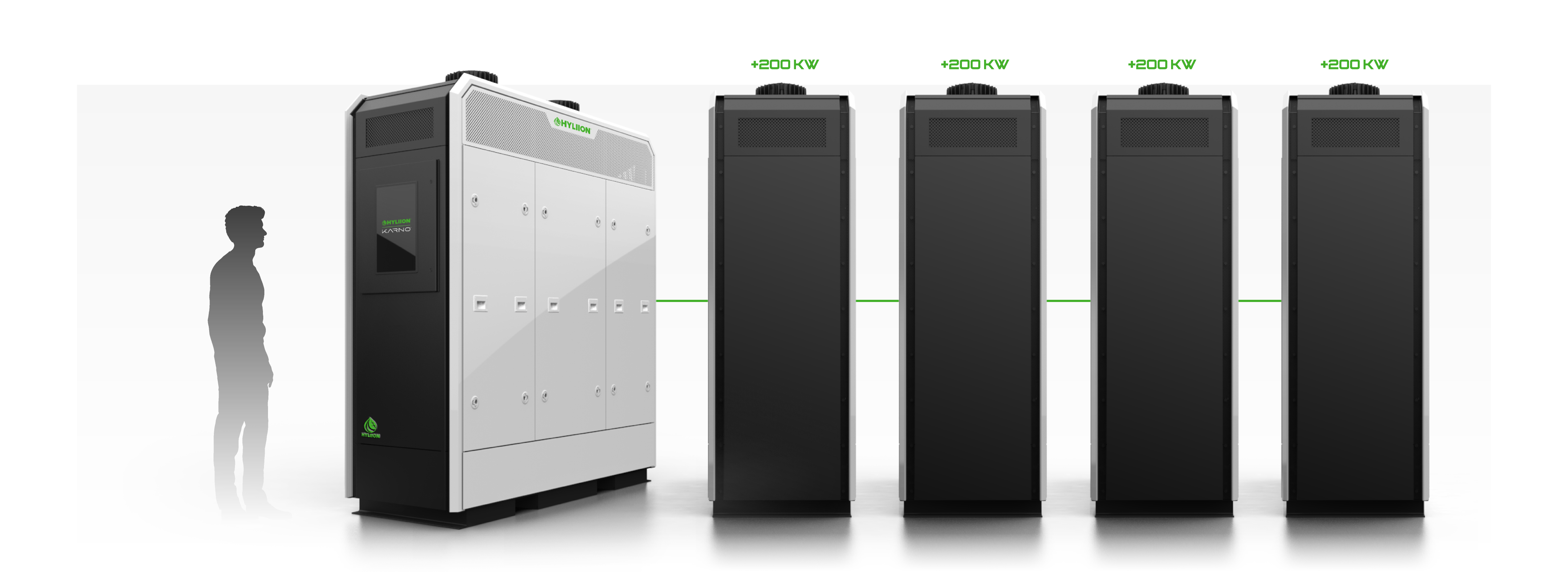

Each standard 200 kW KARNO Power Module features a fully enclosed system, housing a four-shaft power module, power electronics, and thermal and fuel management systems, capable of supplying reliable clean power.
When coupled with an optional grid-tie inverter, the system simplifies site permitting and installation. The KARNO Power Module’s proprietary control system facilitates comprehensive system monitoring, control, and diagnostics, with the capability to control other units for full-scale load paralleling and balancing.*
*Some features/performance metrics may not be available at launch.
*Some features/performance metrics may not be available at launch.

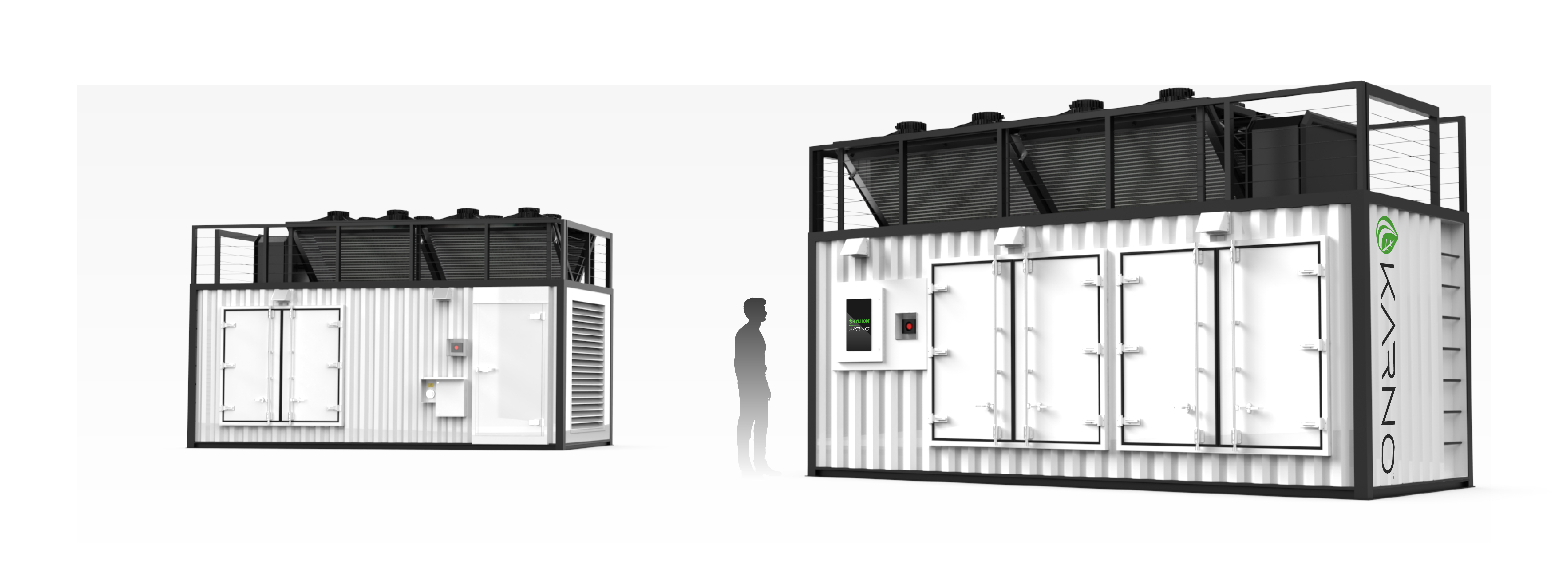

The KARNO system’s modular architecture and class-leading power density delivers 2 MW of clean, continuous and reliable power in a compact 20′ ISO container footprint (~160sqft). With a robust design, low maintenance needs, and quiet operation, KARNO Power Modules are ready to generate and supply clean electricity in both urban and remote locations for any scale.
*Concept images shown. Final design is subject to change.
*Concept images shown. Final design is subject to change.

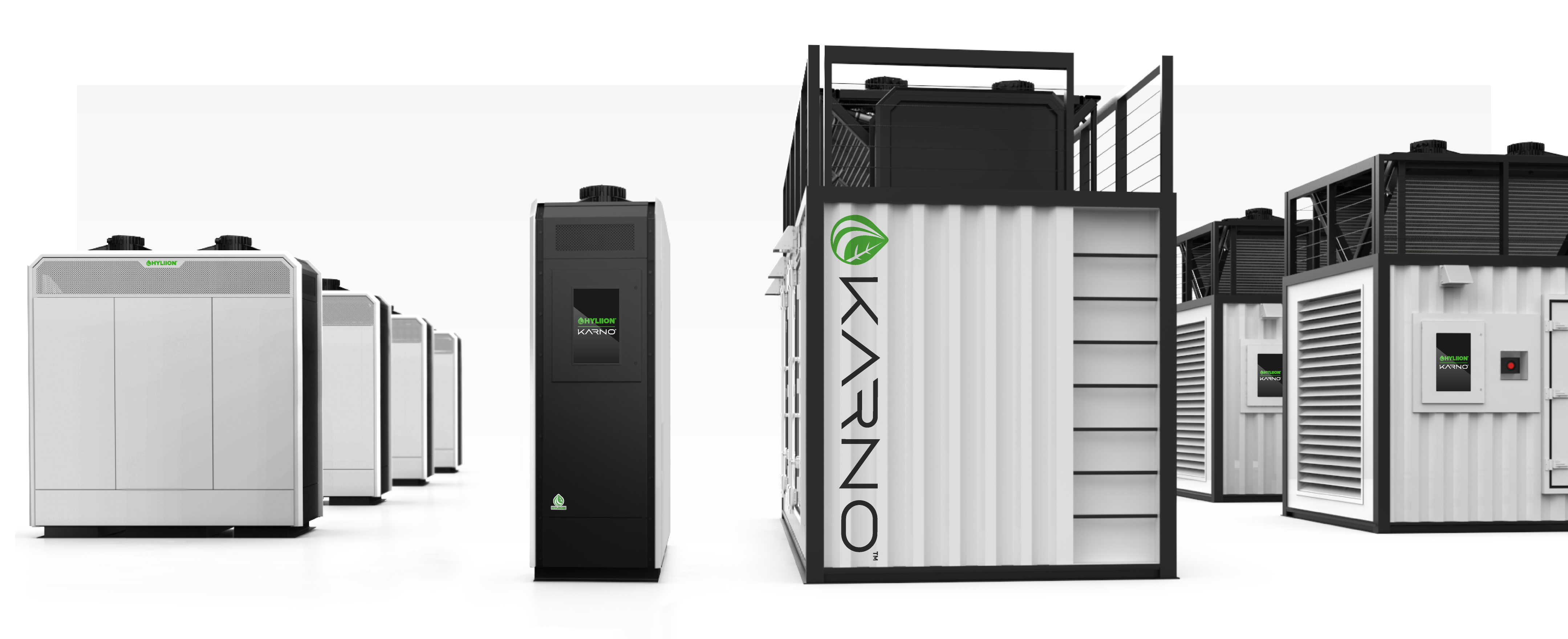

The KARNO Core technology is engineered to easily scale from 200 kW to multiple megawatts, making it highly adaptable for a wide range of applications, from small-scale operations to large industrial demands.
*2 MW concept images shown. Final design is subject to change.
*2 MW concept images shown. Final design is subject to change.
